Carp Deeper Miscellaneous * PRO+2

Material: ABS enclosure, Titanium inserts

Compatibility: From iOS 13.0 and Android 6.0 to the latest iOS and Android devices

Sonar Type: 3 Frequency – Narrow 675 kHz (cone angle 7), Medium 240 kHz (cone angle 20), Wide 100 kHz (cone angle 47)

Target Separation: 1 cm Narrow beam, 2.4 cm Medium beam, 2.4 cm Wide beam

Depth Range: 15 cm – 100 m

Sonar Scan rate: Up to 15 / second

Temperature sensor: Water surface temperature sensor in Celsius / Fahrenheit

Operating Temperature: -20C to 40C / -4F to 104F

GNSS (Global Positioning Systems Supported): GPS, GLONASS, Galileo, BeiDou, QZSS

Operating Time: Up to 9 hours (depending on usage)

Charging Technology: Fast charge, 80% in 45 min., 100% in 75 min.

Internal Battery: Li-Ion, 3.7V Rechargeable, 950 mAh

Outlet Adapter (not included in the box, recommended): Input 110V/220V. Output Micro USB, 5V 2A

Connection type: Wi-Fi

Connection Range: Stable connection up to 100 m

Colour: Black

INSIDE THE BOX

PRO+ 2 Sonar

USB wire

Neoprene pouch

Attachment bolts x2

Quick Guide

Safety Regulations

The Deeper PRO+2 boasts an improved and better than ever now with 3 beam frequencies, more crisp and clear visuals, increased GPS performance, longer-lasting battery up to 9 hours (depending on usage), and scanning depth up to 100 m.

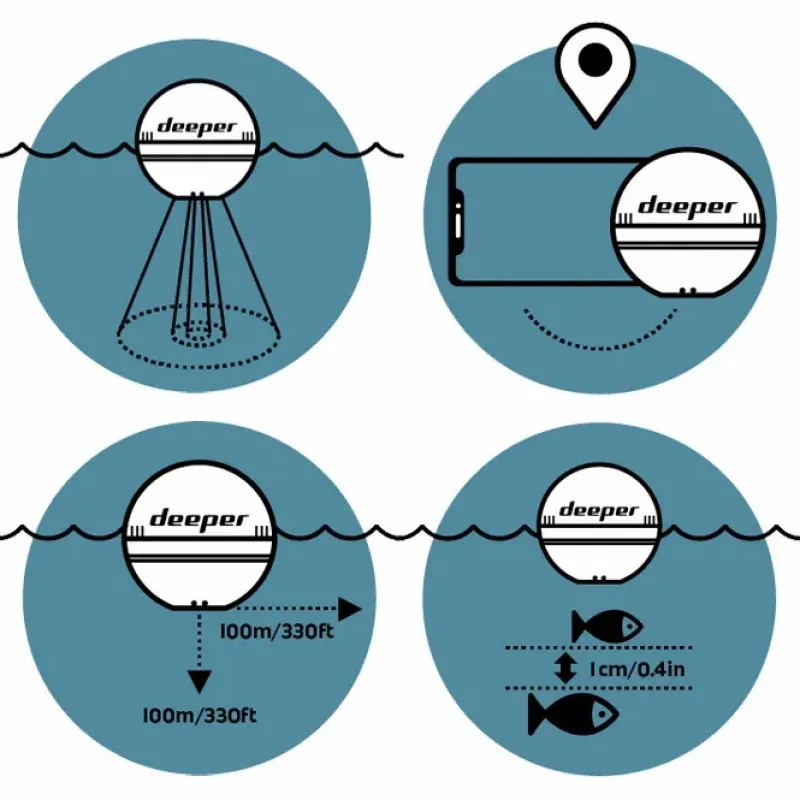

The 3 Beam Frequencies Cover large expanses and locate fish-holding spots faster with the wide-angle beam, 47 (100 kHz). Use the mid-angle beam, 20 (240kHz) to drill in on that hotspot you’ve located. Hone in on your target species with the very detailed, 7 (675kHz) narrow-angle beam.

With the built-in GPS, anglers can create lake maps from the boat fishing and even the shore, dock, or bank. Just cast out and reel in to start mapping a water body. Your maps are automatically saved to Fish Deeper and accessible on any device. This fishing technology boats outstanding depthand casting range scans, down to 100 m with accuracy and precision. It generates its own Wi-Fi signal (no cellular data needed) to connect to your smart device, so cast out to 100 m and feel confident there will be rock-solid connectivity.

With a target separation of 1 cm (narrow beam) and 2.4 cm (wide and mid beams), you’ll be able to easily pinpoint target species and track even the tiniest lure when vertical jigging. Smart fishing with Fish Deeper app Detailed and crisp visuals. Distinguish predator fish from bait fish, bottom huggers from the bottom contour. See vegetation, structure, fish, and bottom contour as well as bottom hardness and consistency. Know water depth and temperature.

Anglers can mark favourite fishing spots, boat launching places and other places of interest. With the PRO plus 2, you can log your catches with photos and detailed notes alongside technique, equipment and baits or lures used.

Ideal for SUP fishing, this fishing tech fits comfortably into a hatch of your boat or tackle box. Troll and map or cast out to reach those hard to access areas. It is also ideal for fishing from small boats. Simply cast out or troll from your boat and troll smoothly at a low speed of 3kph for accurate sonar readings or cast out to hard to reach places.

For shore fishing, sea anglers can just cast out thesonar, reel it back in and get the fishing data you need. Locate the fish, find features to target, or map out your lake to get the complete picture.

Fish Deeper Premium Easily plan your fishing trips by exploring over 50 000 lake maps with Fish Deeper your modern address book for the fish you’re looking for! Know every island, pit, drop-off, shoal, and more. Quickly find the best places to fish and target particular species based on depth and terrain.
