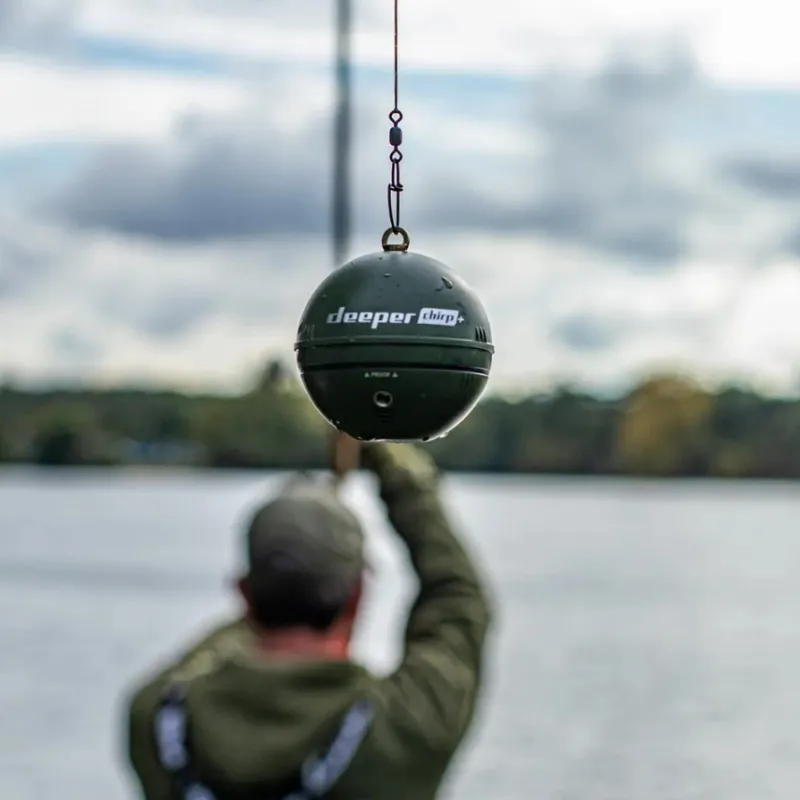

Carp Deeper Miscellaneous * Chirp+

Extended 5-year Warranty

(Battery will not be included in this 5 year warranty)

Material: ABS enclosure, Titanium inserts

3x Frequency CHIRP

Narrow CHIRP 675 kHz (cone angle 7)

Medium CHIRP 290 kHz (cone angle 16)

Wide CHIRP 100 kHz (cone angle 47)

Target separation

1cm / 0.4 in Narrow Chirp

2.4cm / 0.94 in Medium Chirp

2.4cm / 0.94 in Wide Chirp

Depth Range: 15cm / 6 in 100m / 330ft

Sonar Scan Rate: Up to 15 / second

Sonar modes: Standard, Ice fishing, Boat, Onshore GPS

Water surface temperature sensor in Fahrenheit / Celsius

Operating temperature: -20C to 40C / -4F to 104F

GNSS (Global positioning systems supported)

GPS, GLONASS, Galileo, BeiDou, QZSS

Operating times

GPS ON up to 4.5 hours

GPS OFF up to 6 hours

Fast charge: 80% in 45 min / 100% in 75 min

Lithium Polymer, 3.7V Rechargeable, 950 mAh internal battery

Power adapter (not included in the box, recommended)

Input 110V/220V. Output Micro USB, 5V 2A

Connection Type: Wi-Fi

Stable connection up to 100m / 330ft

Colour: Military Green

the Deeper Chirp+ uses integrated GPS to turn your Deeper into a bathymetric mapping device. This enables you to create real-time maps of the waterway that you’re fishing, from both boat and shore. This allows you to pin-point exact features in a way that was only previously possible using boat-mounted consoles. With an 80m/260 ft range and a scanning to a depth of 80m/260 ft, the Chirp+ is ideal for the most demanding of venues, fishing on vast reservoirs can feel like guess work but with the Deeper Chirp+ you’re able to locate fish and even identify its species.

The smart phone app which accompanies the Deeper not only conveys the readings of the sonar system but also features; a fishing calendar, camera function, weather forecast, fishing notes, offline maps, and unlimited history, allowing you to keep a record of the venues that you have fished. A Deeper Smart Phone Mount is available separately and enables you do strap your smart phone to your rod, making operating the app a hands free experience, so you can concentrate on casting and retrieve.

Where the Deeper Chirp differs from previous models and other sonar products on the market is the sonar system itself. Traditional sonar sends out a single pulse at a time, whereas, CHIRP, or Compressed High Intensity Radiated Pulse, emits a continuous flow of frequencies ranging from low to high. As a result, the Deeper Chirp+ will paint a clearer picture of what is beneath the surface, presenting a high-resolution interpretation of topography and features on the lakebed, the clarity definitely gives you an edge, especially in terms of species recognition. If you find yourself on a short session and you need to get on the fish quickly, you would be hard pressed to find a better edge than the Deeper Chirp+.

Whats included inside the box? Chirp+ Sonar, USB Wire, Neoprene pouch, Attachment bolts x2.
